Close-ups of the Bolt




The following are close-ups of the bolt and its parts.  The method to dissasemble the bolt is on my Dissasembly Page.  An interesting point on the bolt is that the left side of the main parts have a Steyr cartouche and the right side has the serial number, this marking pattern includes the firing pin.


      Left		Right

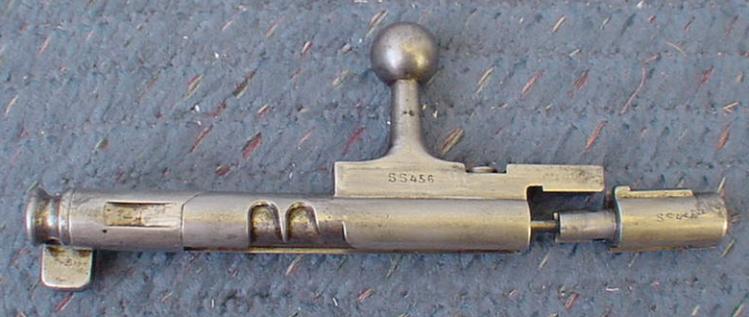

	            Left View					         Right View






      Left Dissasembled		Right Dissasembled

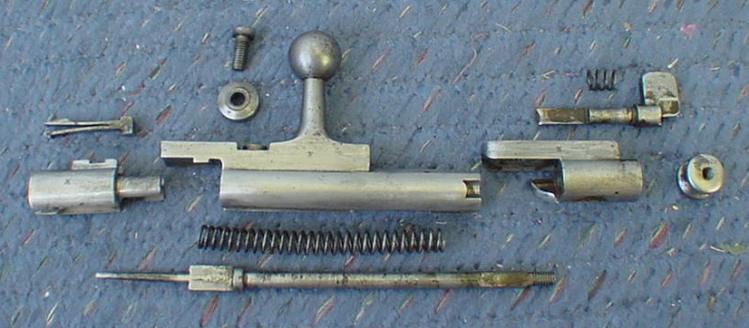

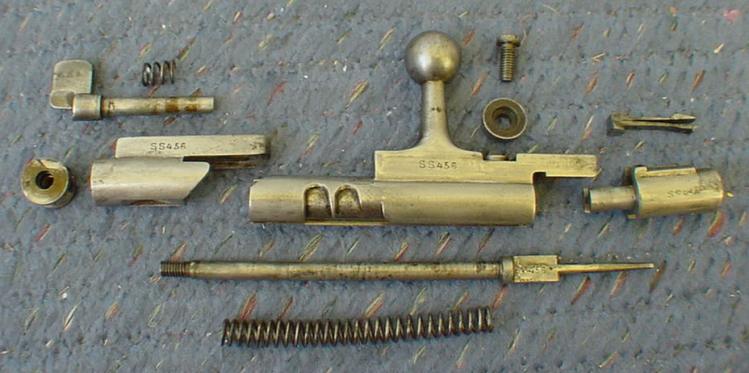

	   Dissasembled Left View			         Dissasembled Right View






      Head-Install		Serial Numbers

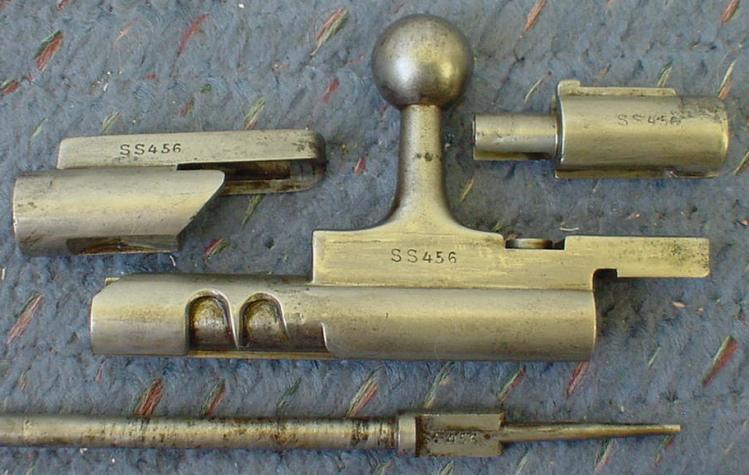

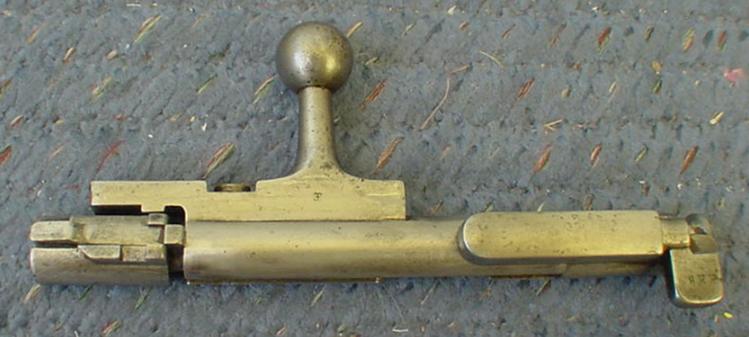

         Left View Showing Bolt Head in			        Dissasembled Right View
              Unlocked, Resting Position		  	   Showing Serialed Numbered Parts
