CLOSE-UP PHOTOS
OF THE RECEIVER AND
KROPATCHEK FEED SYSTEM




The following are close-up views of the receiver and the parts to the Kropatchek tube magazine and feed system.

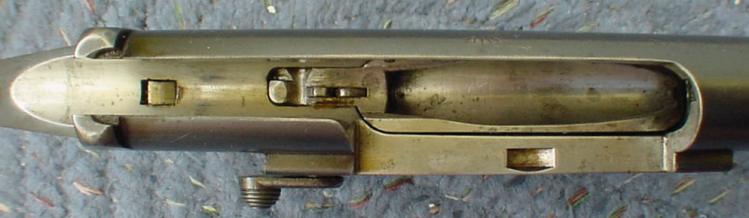

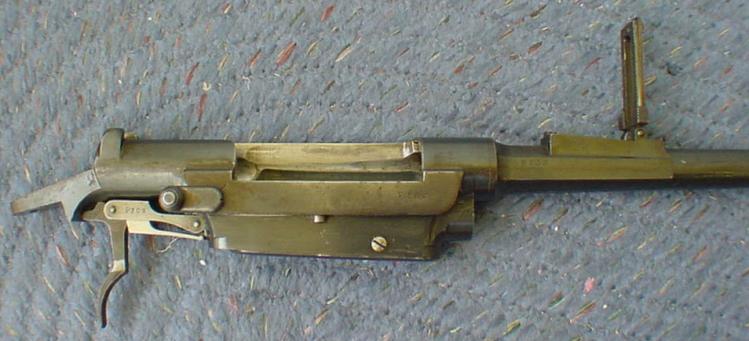

	       Receiver, Right View		          Receiver, Top Showing Lift Arm and
					                          Lift Activation Lugs (right of sear)

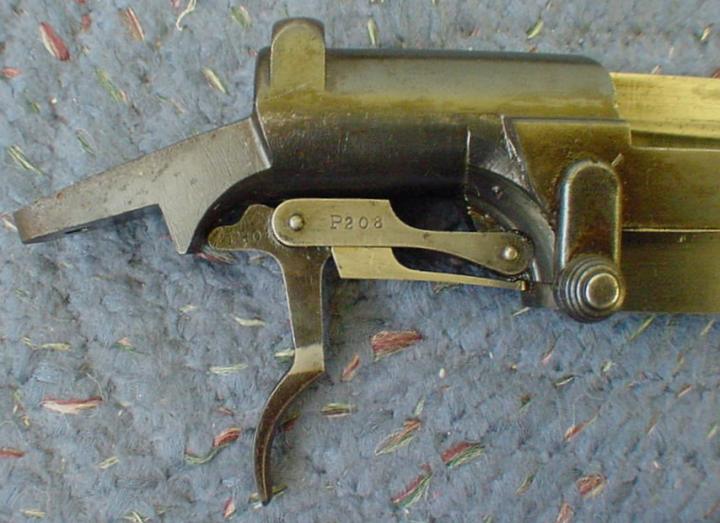

  	  Trigger Group, Right View		    Receiver, Feed Lift Arm is Down, Opening
  	         		   			        for Magazine Tube Below Chamber

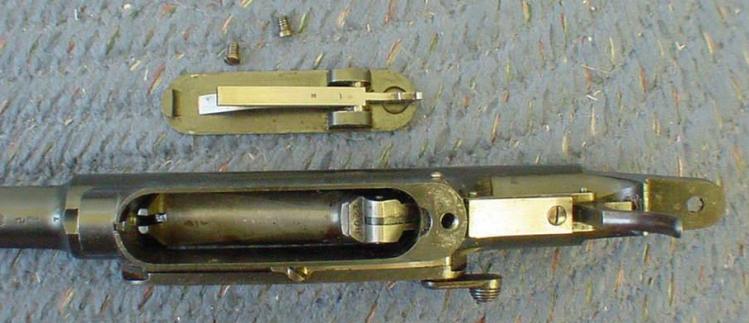

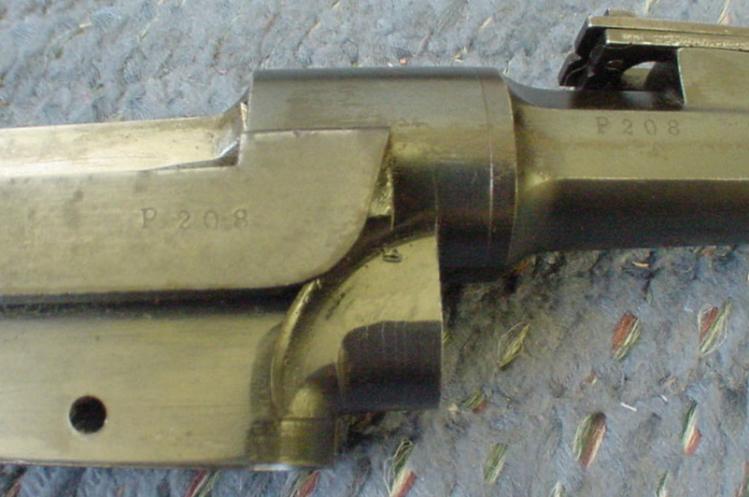

	    Left Side, Close-up Of		                   Bottom with Base Plate & Lift
	      Tube Magazine Port	  	                     Arm Spring Removed (top)

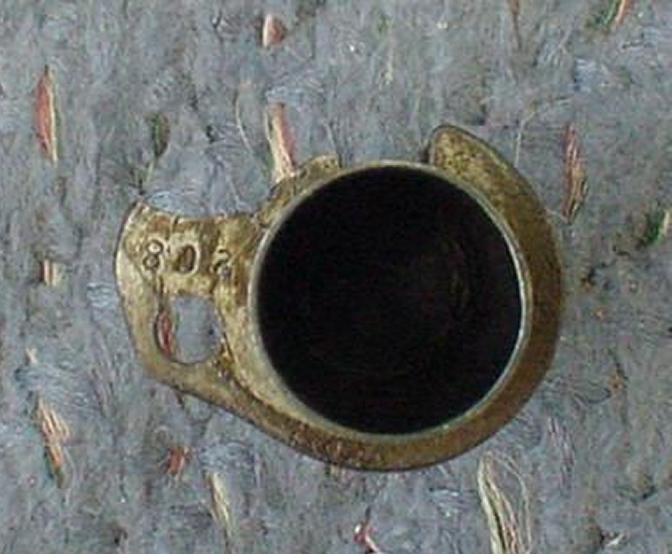

        End-Cap to Brass Magazine Tube,	    		       Closeup of Tube Magazine

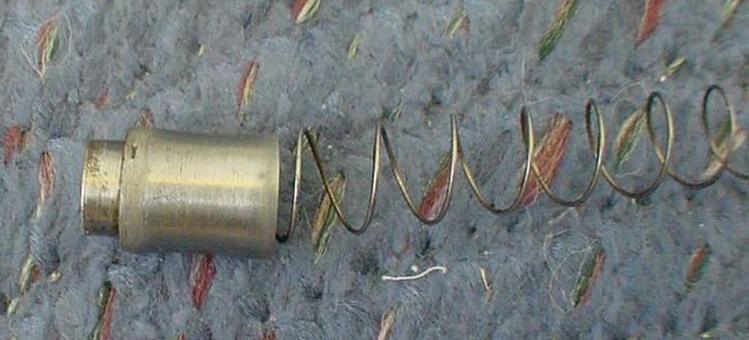

             Bottom View (note serial #)	 			Cartridge Feed Plug
