CLOSE-UP PHOTOS OF THE
STOCK AND HANDGUARD




The following are close-up views of the stock, and the handguard installed during the 1889 retro-fit to produce the "Colonial" model.




	            Stock, Top View				        Handguard, Top View

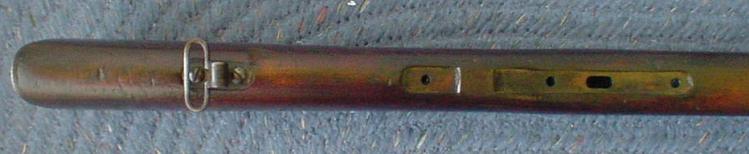

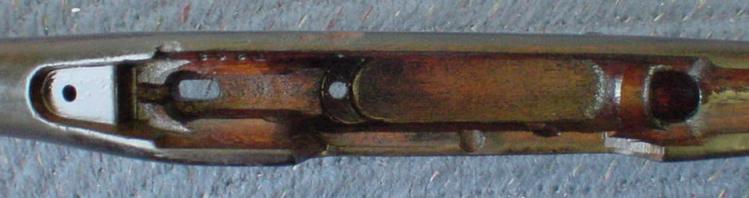

  	    Bottom View of Cut-outs			  Close-up of Receiver Cut-outs
  	         for Trigger Guard   			        (barrel towards the right)

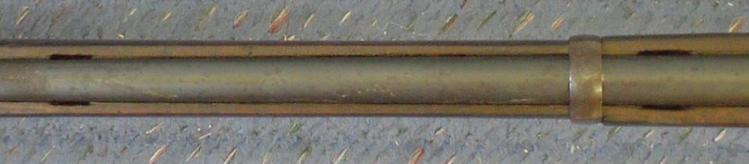

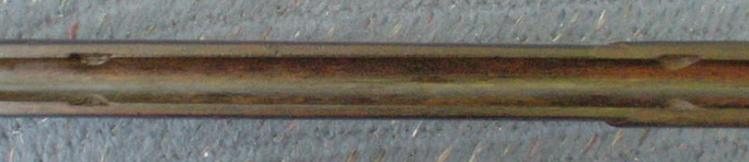

          Top, Middle Area View Showing		              Top, Middle Showing Handguard
	   Slots Cut for Handguard	  	                   Cuts with Barrel Removed

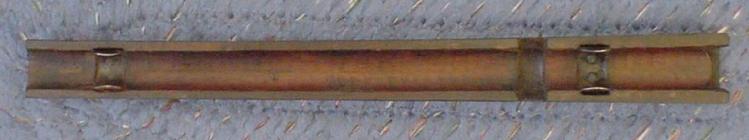

       Bottom View of Handguard Showing	       Closeup-Top Rear Section of Handguard
         Clips and Relieve for Barrel Band	 	       Showing Clip Plugs and Site Releave Slot

Points of interest on the above photos.  The upper hand guard is attached by clips that snug around the barrel.  The clips are attached to the handguard with heavy rivets and the holes caped with wood plugs.  Also, if one looks closely at the photo showing the receiver cut-out, it can be noted that the serial number is stamped into the upper left edge of the cut-out, just to the right of the trigger hole.
